Efficient tube mixing process of HORIBA Medical hematology analyzer Yumizen H1500 & H2500
Automated hematology 5 part cell counter – Yumizen H2500
Clinical utilities of Yumizen H2500 5 part cell counter - Mr Alun Roderic

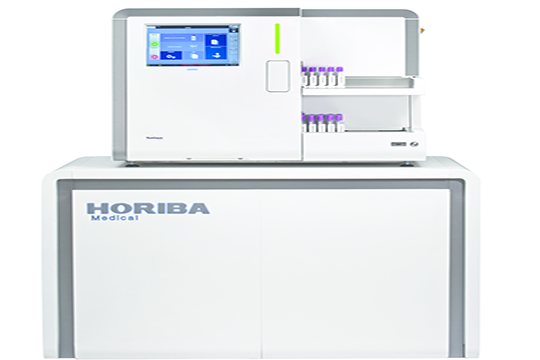

Yumizen H2500/H1500

Hematology Analyzer

Mastering the Analyzis Process to Deliver Reliable Results

  • A real throughput of 120 samples per hour for CBC-DIFF NRBC and slides
  • Expert multi sites validation station embedding standard rules packages (ISLH rules, Rerun, Reflex, Comment, Validation)
  • On board reagents (5 for Yumizen H2500 and 4 for Yumizen H1500)
  • Automatic 360°C rotative sample mixing for perfect homogeneity
  • Up to 55 parameters

► Click here to see the annual catalog (2022)

  • Yumizen H2500/H1500
  • CBC-DIFF NRBC with expert menus for 3D analysis (CVD: Complexity, Volume and distribution)
  • Immature WBC
  • Reticulocytes
  • MIC%, MAC%
  • Plt Ox
  • LVC (Low Value Cycle)



Comprehensive sample management

  • Single sampling needle for both rack and STAT mode
  • Low sampling volume of 110µl
  • STAT and manual modes with multi pre-calibraded types of tubes (pediatric, micro-cup...)
  • New rack system compatible with most of other EDTA analyzers and sorters.
  • Innovative four-sided autoloader for perfect sample mixing and optimized loading

Technical

Weight

112 kg

Power supply

100 V / 50 Hz to 240 V / 60 Hz

Dimensions

73 x 83 x 65 cm (HxWxD).

Screen

Colour LCD touch screen of 12.1 in

Computer

Intel Celeron

2GB RAM

Mouse and Keyboard

2 audio jacks (line out and mic-in)

Connectors

1 VGA

3 RS232

2 USB2

2 USB3

2 ETH

2 PS2

Graphical User Interface

Flat design oriented conform to HORIBA graphical chart

Storage Capacity

100 000 results (include Graphics and Runs)

Logs

Reagents, calibration, quality control, blank cycle, users, settings, service, communication

Samples

Complete Blood Count (CBC)

WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, MIC%, MAC%, PLT, MPV, PCT, PDW

Differential Leucocyte Count (WBC/DIF)

LYM#, LYM%, MON#, MON%, NEU#, NEU%, EOS#, EOS%, BAS#, BAS%, ALY#, ALY%, IMG#, IMG%, IML#, IML%, IMM#, IMM%, LIC#, LIC%, NRBC, NRBC%

Reticulocyte Count (Ret)*

RET#, RET%, CRC, MRV, RETH%, RETM%, RETL%, IRF, RHCC, MFI, PIC



*Only available on H2500



Regeants

ABX DILUENT

ABX BASOLYSE

Yumizen NUCEDIFF

ABX LYSEBIO

ABX FLUOCYTE (only on H2500)

ABX CLEANER

 Results

Parameters

Linearity

WBC

0-300 103/mm3

RBC

0-8,8 106/mm3

HGB

0-24,5 g/dL

HCT

0.68,8 %

PLT (whole blood)

0-5000 103/mm3

PLT Ox

0-3440 103/mm3

RET%

0-35 %

RET#

0-1,24 106/mm3
