Product Details

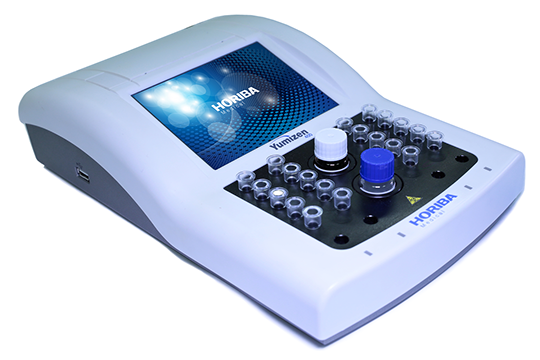

Yumizen G400

Hemostasis Analyzer

Semi-automated Hemostasis Instrument

Smart way to test

  • 4 independent measuring channels
  • 20 incubation positions
  • Easy to operate, innovative user interface
  • QC management
  • Master calibration curve (no calibration need)



Security

  • Bar code reading capability
  • External data storage (USB device)
  • Ready-to-use reagents



Increase efficiency

  • 3 reference measuring methods: clotting, immuno-turbidimetric and chromogenic
  • 120 sec maximum measurement
  • Maintenance free



User friendly features

  • Internal storage capacity
  • Inegrated printer
  • Reduced footprint
  • Multiple connectivities

- Laboratory information system
- Optional Yumizen G data software

► Click here to see the annual catalog (2022)

  • Yumizen G400
Dimensions & Weight

Lenght: 200 mm, Height: 80 mm, Depth: 320 mm

Weight: 2.55 Kg

Throughput120 sec maximum measurement
Temperature15°C - 30°C
Power

100-240VAC, 47-63Hz, 25W

External power supply

Export

2 x USB plug:

1 x Master USB connector: to connect an external printer, barcode reader or external storage device to the instrument.

1 x Slave USB connector: to connect the instrument to a computer as an external device.

ScreenColor LCD touch screen 115 x 86 mm
Storage capacity1000 results
Parameter

Clotting tests (640 nn)

Screening tests (PT, APTT, Fibrinogen, TT)

Factors (II, V, VII, X, VIII, IX, XI, XII)

Immuno-turbidimetric test (570 nm)

D-Dimer*

Chromogenic test (405 nm)

ATIII*

Consumables (kit)

Yumizen G400                               1 pc

Power supply unit                          1 pc

Magnectic mixer (2 pcs / set)         1 set

User manual                                 1 pc

Norms

EN 61326-2-6: 2006

IEC 61010-1: 2001

IEC 61010-2-101: 2002

EN ISO 13485: 2003 and 2012

NF EN ISO 14971: 2013

Directives

98/79/EC (DIV)

2011/65/EU (RoHS)

1907/2006 (REACH)

2014/30/EU (Electro Magnectic Compatibility)

2014/35/EU (Voltage limits)

*ATIII and DDimers parameters available on Yumizen G400 DDI
