Healthcare Diagnostic Solutions Ltd.
Product Details

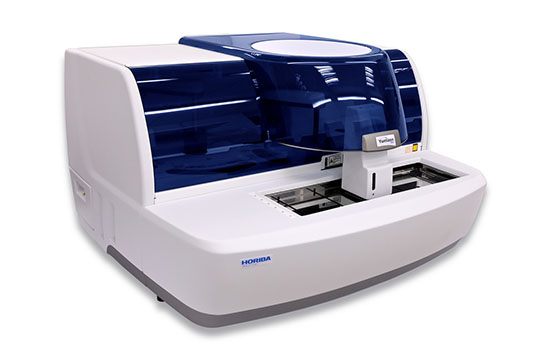

Yumizen G800
Hemostasis Analyzer
Automatic benchtop hemostasis analyzer for laboratories with mid-size workloads.
Smart way to test
- 4 independent measuring channels
- 14 cooled + 4 reagent embedded positions
- 10 samples + 5 STAT sample positions
- Automatic reflex and rerun capacity
- Master calibration curve (no calibration needed)
Comprehensive Security
- Positive identification
- Internal data storage, integrated computer
- Ready-to-use reagents
Increased efficiency
- 3 reference measuring methods: clotting, immuno-turbidimetric and chromogenic
- Continuous loading: 60 samples / 600 cuvettes
- Throughput 160PT tests/hour
- Maintenance free
User friendly features
- Smart QC management
- Innovative user interface
- Multiple connectivities: Laboratory information system - VPN
| Dimensions & Weight | Lenght: 850 mm, Height: 510 mm, Depth: 750 mm Weight: 80 Kg |
| Throughput | 150 PT/hour Sampling volume: 5 - 200µl |
| Temperature | 15°C - 32°C |
| Power | 100-240v 50Hz-60Hz, 5A |
| Export | 6 x USB plug |
| Screen | Color LCD touch screen 17\'\' |
| Storage capacity | 1.000.000 results |
| Parameter | Clotting tests (640 nm) Screening tests (PT, APTT, Fibrinogen, TT) Factors (II, V, VII, X, VIII, IX, XI, XII) Immuno-turbidimetric test (570 nm) D-Dimer Chromogenic test (405 nm) ATIII |
| Norms | EN 61326-2-6: 2006 IEC 61010-1: 2001 IEC 11010-2-101: 2002 EN ISO 13485: 2003 and 2012 NF EN ISO 14971: 2013 |
| Directives | 98/79/EC (DIV) 2011/65/OU (RoHS) 1907/2006 (REACH) 2014/30/EU (Electro Magnetic Compatibility) 2014/35/EU (Voltage limits) |
*ATIII and DDimers parameters available on Yumizen G400 DDI
