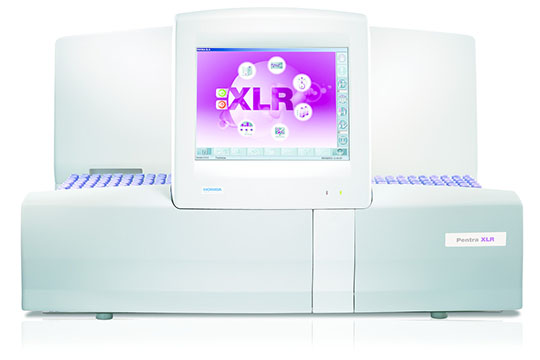

Pentra XLR

Compact and reliable hematology platform including reticulocytes by fluorescence

Malaria Screening in Routine Hematology Testing (Click here)
Malaria testing is optionally available on ABX Pentra XL 80 and Pentra XLR upon request towards your HORIBA Medical representative.

Throughput: Up to 80 samples/hour
Large capacity auto-loader (100 tubes)
Stat sampling on open or closed tubes
Automatic Sample Re-run
Reagents: Only 5 onboard reagents and 1 diluent
Perfect differentiation of the 5 WBC sub-populations with DHSS* Technology
3 histograms for RBC, BAS/WBC and PLT
High resolution 5 Diff Matrix include the determination of Atypical Lymphocytes (ALY**) and Large Immature Cells (LIC**)
Basophils counted through specific channel
High resolution reticulocyte Matrix for three stages of reticulocytes maturation quantification
RHCc** Reticulocyte Hemoglobin Cellular content and reticulocytematuration parameters
Cytochemistry, Impedance (real cell volume measurement) & Optical (analysis of the internal cellular structure by measuring light absorbance) - Fluorometry - DHSS* technology
Integrated Workstation with Color Touch Screen
Integrated Validation Station
Customized Dilution Ratio (CDR)
Micro-sampling from whole blood (CBC, RET: 35µl – Diff: 53µl)

* DHSS : Double Hydrodynamic Sequential System
** RUO parameters (Research Use Only)

Weight	138 lb / 62.5 kg
Power supply	100 V to 240 V (± 10%) - 50 Hz to 60 Hz
Dimensions	32.3 x 22.4 x 21.5 in / 82 cm x 57 cm x 54 cm
Printer	Laser
Throughput	Up to 80 samples/hour
Data Processing	Colour LCD touch screen: 12 in PC onboard: Celeron 566 MHz Windows XP Prof.TM RAM (256 Mo), Hard disk (10 Go mini) RS 232C, 5 USB User defined flagging limits Transmit patient files & QC to LIS Uni-directional & bi-directional connections ASTM protocol inside
Memory capacity	10 000 results + Graphics
Quality Control Management	36 selectable QC files XB: 100 operator selectable files with statistics (20 results per file) With-in run Levey-Jennings graphs
Logs	Reagents, Quality Control, Calibration, Maintenance, Blank Cycle, Patients Data, Settings, Information, Technology Communication, Errors, by date.
Patient reports Management	Delta check Anteriority (Matrix, curves, data) Manual input


Parameters (36)	WBC, NEU# & NEU%, LYM# & LYM%, MON# & MON%, EOS# & EOS%, BAS# & BAS%, ALY# & ALY%, LIC# & LIC%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW CV, RDW SD, PLT, MPV, PCT, PDW, RET%, RET #, RETH%, RETM%, RETL%, CRC%, IRF%, MRV, RHCc*
Graphs	2 High-definition matrix: LMNE and RET PLT, RBC, WBC/BAS curves
Blood Volume	CBC mode: 35 µL CBC + DIFF mode: 53 µL RET mode: 35 µL
Stability	48 hours post-draw stability
Operating sample mode	Autoloader 10 racks (100 tubes) capacity Sample mixing with end-over-end tube rotation Closed or open STAT tube
Identification	Alphanumeric. Bar-code reader and internal bar-code scanner

* RUO parameters (Research Use Only)

Parameters	Precision (%CV)	Linearity Limits	Linearity Limits with CDR*
WBC	< 2.0	0-120 x 10³/µL	120-360 x 10³/µL
RBC	< 2.0	0-8 106/µL	0-8 X 106/µL
HGB	< 1.0	0-24 g/dl	0-24 g/dL
HCT	< 2.0	0-67%	0-67%
PLT (whole blood)	< 5.0	0-1900 x 10³/µL	1900-3800 x 10³/µL
PLT (PLT concentrate)	< 5.0	0-2800 x 10³/µL	2800-5600 x 10³/µL
RET%	< 12.0	0-42%
RET#	<20	0-1.5

*CDR: Customised Dilution Ratio
